Quick Summary
This guide explains how shifting clay soils and mechanical wear cause sagging gates, cracked welds, and opener strain, highlighting why prompt gate hinge repair in Bedford is essential. Ironworks Gate Co. provides permanent solutions through on-site structural welding, post plumbing, and heavy-duty ball-bearing barrel hinge replacements that restore balanced alignment on the first visit. After reviewing diagnostic steps and estimated repair costs, property owners can contact Ironworks Gate Co. to schedule same-day hinge repairs or request a free on-site gate assessment in Bedford.
Gate Hinge Repair: Alignment and Maintenance Guide
If your driveway gate drags along the driveway, binds halfway through its swing, or refuses to latch, professional gate hinge repair can restore proper operation. Mobile welding technicians can handle precision realignments and on-site fabrication. While many property owners think an unresponsive gate is caused by an electrical motor failure, mechanical hinge issues or ground movement are often the primary culprits.
Heavy iron and steel gates carry hundreds of pounds of cantilevered weight. When a hinge weld cracks or hardware wears out, temporary shims or quick fixes will often fail within a short time. Experienced structural welding technicians, such as those from Ironworks Gate Co., can repair cracked welds, rebuild heavy-duty barrel hinges, and correct post tilt caused by ground movement. Consulting an experienced specialist helps ensure long-term stability and proper alignment. See also Gate Repair in Kennedale – Call Now-10% Off – On-Site in 60 Minutes – Free Estimate.
Quick Answer: How Does Gate Hinge Repair Work?
Quick Answer: Gate hinge repair resolves sagging, sticking, or broken swing and slide gates through on-site structural welding, heavy-duty barrel hinge replacement, and post realignment. Professional technicians correct post movement and mechanical wear so driveway gates swing freely and latch securely.
Proper gate hinge repair goes deeper than swapping out loose bolts. In areas with expansive clay soils, hinge failures can stem from lateral ground pressure pulling gate posts out of plumb. Technicians correct the structural alignment of the post, reinforce the mounting plates, and install sealed ball-bearing barrel hinges that handle the true weight of the gate.
Immediate Diagnosis and Repair Process
Treating damaged hinges as simple surface wear ignores potential ground pressure beneath the concrete footing. Heavy swing gates must support the full weight of each leaf without binding or putting back-pressure on the operator. A thorough repair process typically follows clear mechanical steps:

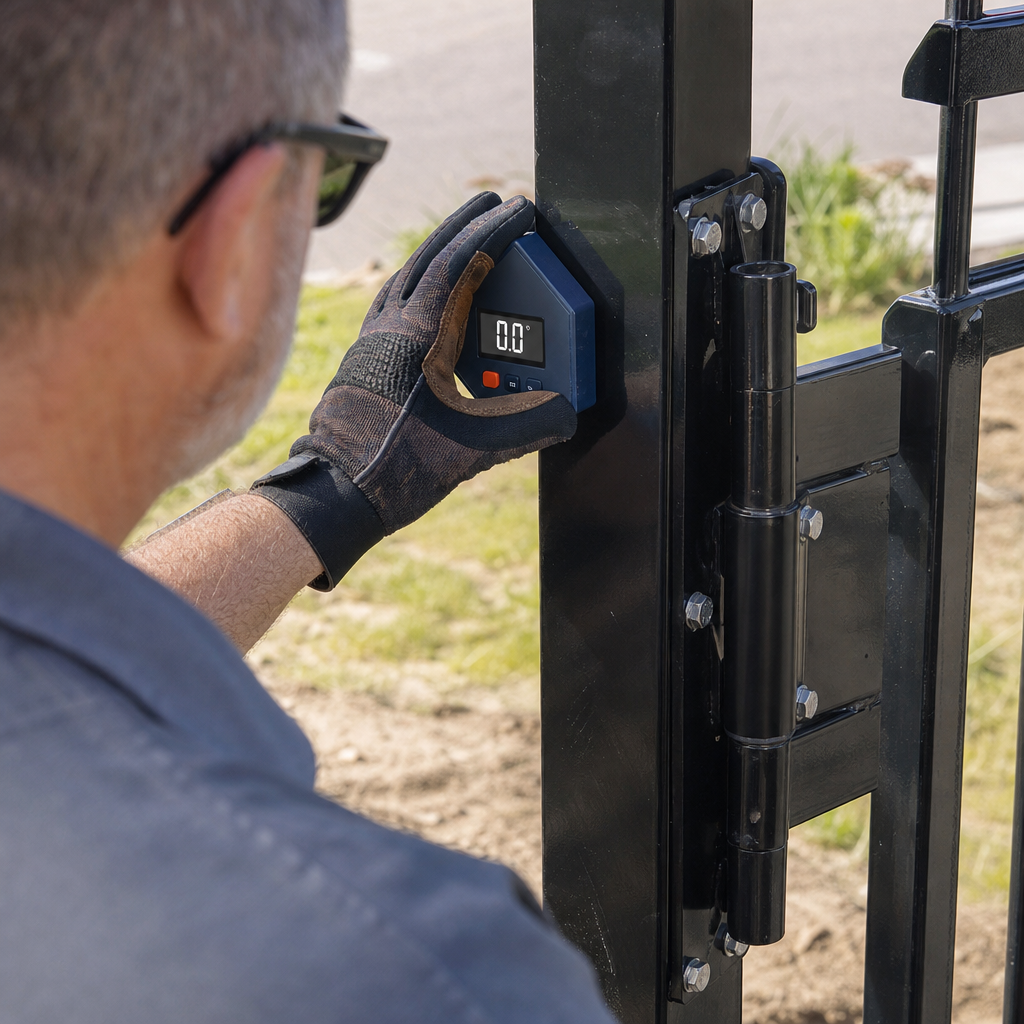

- Structural Load Diagnosis: Technicians inspect post plumb, footing stability, and ground movement caused by expanding and contracting soil.
- Mobile Welding and Fabrication: Failed brackets are removed, steel is prepped, and reinforced steel mounting plates are welded directly to the post.
- Bearing Installation and Realignment: Greaseable, heavy-duty barrel hinges are installed to reduce drag, protect the motor, and prevent future sagging.
What Does Gate Hinge Repair Typically Cost?
Need gate hinge repair in Bedford?
We’re available now - call for a fast, free estimate.
Gate hinge repair generally costs between $150 and $450 for standard hinge replacements and mobile structural welding. Minor hinge adjustments and latch realignments typically run from $125 to $240. If ground movement has tilted the gate post out of plumb or caused secondary damage to an automatic opener, repairs involving post straightening and operator realignment can range from $500 to $1,200.
Typical Service and Repair Price Ranges
Total repair costs depend on whether the issue is isolated to worn hinge hardware or involves deeper structural post deflection. Bolting hardware onto a crooked post can lead to repeat breakdowns.
| Service Level | Estimated Cost Range | Post Realignment | Opener Diagnostic | Expected Durability |
|---|---|---|---|---|
| Basic Hinge & Latch Adjustment | $125 – $240 | No | No | Short-term fix |
| Structural Mobile Welding & Hinge Replacement | $150 – $450 | Yes | Yes | Long-term reliability |
| Post Realignment & Operator Restoration | $500 – $1,200 | Yes | Yes | Complete structural correction |
*Note: Price ranges reflect general industry estimates for residential and light commercial gates. Final estimates are typically provided in writing on-site before work begins.
Key Factors That Influence Your Repair Estimate
When evaluating repair costs, secondary damage to the gate opener must also be considered. A sagging, dragging gate forces an automatic operator to push through heavy friction. This extra load can strip internal drive gears or burn out electric motors long before the hinge completely breaks.
Expansive clay soils can also exert continuous pressure on hinge posts. Reputable repair contractors like Ironworks Gate Co. provide clear, upfront written estimates so property owners understand the exact scope of structural welding, hinge replacement, and alignment work required.
Why Do Heavy Driveway Gate Hinges Fail in Expansive Soils?
Driveway gate hinges frequently experience strain in regions with expansive clay soils that swell during wet periods and shrink during dry spells. This soil expansion and contraction can exert lateral force against gate posts, potentially tilting them off plumb and stressing weld seams under uneven weight distribution.
The Impact of Expansive Soil on Gate Posts
Expansive vertisol clays react noticeably to seasonal moisture changes. As soil volume shifts between dry periods and heavy rainstorms, underground concrete footings can move, tilting steel gate posts slightly. Even a minor angle creates significant extra sideways torque on the upper hinge assembly.
Attempting to fix this solely by tightening bolts or re-hanging the gate on a tilted post often results in recurring issues. According to Ironworks Gate Co., resolving the root problem generally requires plumbing the post, reinforcing the joint with gusseted steel plates, and installing adjustable hardware designed to accommodate minor ground shifts.
How Sagging Hinges Damage Automatic Gate Openers
A failing hinge does more than scrape the ground; it can damage automated access equipment. Operators from major manufacturers are engineered to move balanced gates, not drag heavy iron across paving. When a hinge binds, the motor draws excess electrical current to force the gate open, resulting in:
- Stripped Drive Gears: Internal drive gears can grind down under excessive mechanical resistance.
- Overheated Motor Windings: Constant amperage surges overheat the motor, tripping internal thermal overloads and shortening equipment life.
- Bent Actuator Arms: Twisted swing geometry can bend linear actuator shafts and damage mounting brackets.
Fixing hinge issues early protects the operator, preventing a straightforward welding repair from turning into a complete automated system replacement.
Can a Broken Gate Hinge Be Welded or Does It Need Replacement?
Need gate hinge repair in Bedford?
We’re available now - call for a fast, free estimate.
A broken gate hinge can often be welded if the failure is a clean separation along an intact weld joint on a sound hinge body. A complete replacement is usually required when the hinge barrel is bent, the internal pin is ground down, metal fatigue has cracked the mounting plate, or the hardware is undersized for the gate’s actual weight.
When On-Site Structural Welding Is the Right Solution
Re-welding is often a cost-effective fix when a heavy-duty hinge has separated from a steel post due to surface fatigue or an impact, provided the hinge pin and barrel remain straight. Proper repair requires full weld penetration rather than temporary surface fixes that can fail under regular use.
Mobile repair units typically grind away old slag and cracked metal, bevel the steel for full-penetration welding, and reinforce the connection with solid structural beads. The repair approach depends on the failure type:
| Defect Type | Recommended Solution | Mechanical Rationale |
|---|---|---|
| Separated Weld Seam | Structural On-Site Re-Welding | The base metal is intact; full-penetration welding restores complete load capacity. |
| Cracked Barrel or Worn Pin | Full Hinge Replacement | Fatigued or ground-down metal cannot be safely patched without risk of failure. |
| Soil-Driven Post Misalignment | Adjustable Barrel Hinge Upgrade | Allows for minor seasonal adjustments without binding the opener arm. |
When to Upgrade to Heavy-Duty Ball-Bearing Barrel Hinges
Standard strap or pin hinges wear out quickly on driveway gates because they cannot handle combined radial and thrust loads. Upgrading to heavy-duty, greaseable ball-bearing barrel hinges provides smoother operation and helps prevent premature motor burnouts.
High-capacity hinges provide long-term reliability and reduce the frequency of service calls. Professional technicians at Ironworks Gate Co. ensure proper alignment and quality welds to keep gates operating reliably.
Frequently Asked Questions About Gate Hinge Repair
Addressing both ground movement and hinge wear ensures driveway gates swing smoothly, latch cleanly, and keep properties secure.
How much does gate hinge repair typically cost?
Standard hinge repairs, including welding or hardware replacement, typically cost between $150 and $450. Minor latch adjustments run from $125 to $240, while extensive repairs that require straightening shifted posts can range from $500 to $1,200.
How quickly can gate hinge repair be scheduled?
A broken gate can disrupt access and leave a property insecure. Many mobile repair services, including Ironworks Gate Co., offer prompt scheduling to inspect, realign, or weld failing gate hardware as quickly as possible.
Can technicians repair both ornamental iron and heavy ranch gates?
Yes. Fully equipped mobile welding rigs generally carry the equipment and materials needed to service ornamental residential gates, commercial security gates, and heavy welded pipe ranch gates.
Will repairing the hinge fix a gate opener that stops halfway?
In many cases, yes. When an opener stalls or reverses mid-cycle, it is often because a sagging hinge is causing excessive friction, which trips the motor’s built-in safety sensor. Realigning the hinge and installing smooth ball bearings eliminates that resistance so the opener can run normally.
Need gate hinge repair in Bedford?
We’re available now - call for a fast, free estimate.
Related reading: Gate Operator Repair in Arlington | 10% Off & Free Estimate | On-Site in 60 Minutes
Related reading: Gate Repair in Richland Hills | Call Now-10% Off | On-Site in 60 Minutes | Free Estimate
Related reading: Gate Repair in Burleson – 10% Off & Free Estimate – On-Site in 60 Minutes
Frequently Asked Questions
How can I tell if my gate issue is a broken hinge or shifting soil beneath the post?
A cracked weld, metal shavings, or binding hinge pins indicate localized hardware failure while the post remains vertical. If a level shows the post itself is tilting due to Bedford's clay soil, Ironworks Gate Co. straightens the post and reinforces the structure alongside hinge replacement.
How often should heavy-duty ball-bearing gate hinges be lubricated after repair?
Greaseable barrel hinges should generally be serviced through their grease fittings every six to twelve months using heavy-duty marine or lithium grease. Routine lubrication applied by property owners or during Ironworks Gate Co. maintenance visits prevents internal friction and extends the life of automated gate operators.
How long does a mobile gate hinge welding and alignment service call take?
Most residential hinge re-welds, barrel hinge upgrades, and post realignments are completed in two to four hours. Ironworks Gate Co. dispatches fully equipped mobile welding units to complete the structural fabrication, alignment, and operator testing in a single visit.
About the author
 |
Rachel Lin Rachel is a technical writer specializing in home security and access control systems, with over 6 years of experience creating practical maintenance guides. Holding a B.S. in Industrial Technology from Texas State University, she translates complex mechanical and electrical concepts into clear, actionable advice. Her work focuses on helping property owners and managers troubleshoot issues and understand the mechanics of automated gate systems. |
